From the manufacturer
Two-Way Sound Reinforcement Loudspeaker System
This trapezoidal, 15 inch speaker system is at home in live sound, dance music and speech reinforcement.
Features
– JBL 15 in low frequency driver with a 64 mm (2.5 inch) diameter edge wound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling
– JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability
– The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
– High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating

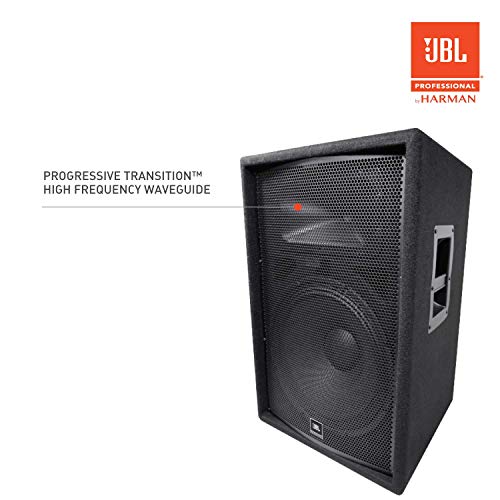

– Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response
– The rugged, acoustically superior enclosure is constructed from 19 mm (.75 inch) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance
– SonicGuard protects the high frequency driver from excess power without interrupting the performance.
– Non-resonant, all-steel handles are used
– Attractive 18-gauge perforated, steel grille protects components from damage
– Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage
Specifications
Power Rating
250 W / 1000W
Crossover Frequency
2.2 kHz
Frequency Range (-10 dB)
41 Hz – 18 kHz
Dimensions
699 mm x 460 mm x 432 mm
Frequency Response (±3 dB)
59 Hz – 13 kHz
(H x W x D)
(27.5 in x 18.1 in x 17 in)
Sensitivity (at 1m)
99 dB SPL (1w/1m)
Weight
27.4 kg (60.5 lb)
Nominal Impedance
8 ohms
High Frequency Driver
JBL 2414H-C , 1 inch exit compression driver mounted on Progressive Transition Waveguide
Recommended Amplifier Power
250 W to 500 W into 8 ohms
Low Frequency Driver
JBL M115-8A
Maximum SPL
129 dB
Input Connectors
Neutrik Speakon NL-4 (x1); .25in TS phone jack (x1); parallel
Nominal Dispersion
90º x 50º
Non-resonant, all-steel handles are used.
Attractive 18-gauge perforated, steel grille protects components from damage.
Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage
